Battery Electrode Film Coater with Vaccum Coating Heat Dryer Cover

Detail Information

Place of Origin	China	Brand Name	GERUISI
Model Number	GRS-TMH250	Core Components:	Coater And Dryer
Applicable Industries:	Battery Electrode Coat	Coating Width:	250mm
*Coating Speed::	0-120mm/s	Vacuum Plate Size::	L365mm * W200mm * H32mm
Including:	1 Oil-free Vacuum Pump (built-in)	Heating And Drying System::	Room Temperature~200 ℃
Highlight	battery electrode coating machine dryer, Vaccum battery electrode coating machine, Vaccum electrode coater

Product Description

Automatic film drying machines are widely used in various high-temperature film research, such as ceramic films, crystal films, battery material films, and special nano films; It can adapt to the development of science and technology for film formation under high temperature conditions in the future
Features:
1.Strong wind circulation drying and heating, digital display temperature control;

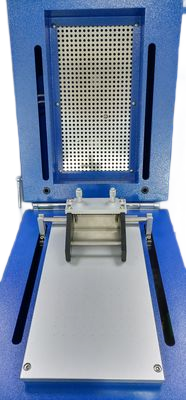

2. Flat coating, motor driven scraper coating, stable and adjustable coating speed;
3.The travel can be adjusted through a travel switch between 0 and 250MM;Standard film maker with high coating accuracy and
adjustable coating thickness;
4.The coating speed is adjustable within the range of 0 to 120 MM/s (lithium iron phosphate slurry); Vacuum aluminum plate, which
can quickly place or remove the substrate;
5.Can be used in a glove box, easy to operate, small in size, and can save space; Built-in vacuum pump, substrate adsorption
without deformation and wrinkles;

Specification

Technical parameters:

*Coating method: flat coating, standard GRS-TM100 film maker, coating width 100mm (can be increased), optional scraper or other measuring devices (manual scraping);

*The coating stroke is about 250mm (can be increased), and the stroke is infinitely adjustable within the touch screen;

*Coating drive: Motor driven, coating speed can be infinitely set and adjusted within the touch screen;

*Coating speed: 0-120mm/s (such as lithium iron phosphate slurry);

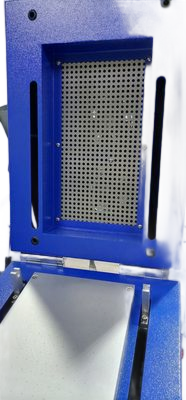

*Vacuum plate: with vacuum aluminum flat plate;

*Vacuum plate size: L365mm * W200mm * H32mm;

*Adjustable range of scraper thickness: 0.05-6mm adjustable;

*Accuracy: ± 3 μ m. Optional display 1 μ M micrometer;

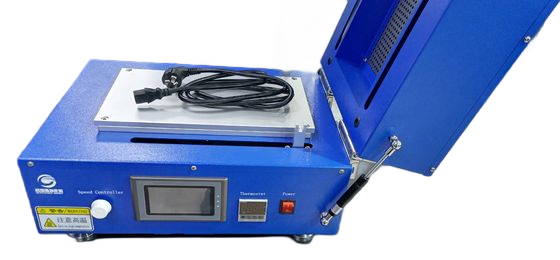

*Heating and drying system: room temperature~200 ℃, digital temperature controller, accuracy ± 1 ℃;

*Including 1 oil-free vacuum pump (built-in);

*Power supply: 220V/50Hz;

*Weight: 50Kg;

*External dimensions: L500mm * W350mm * H320mm

Coating speed	0～ 120mm/sec (lithium iron phosphate slurry)
Maximum stroke	250mm
Vacuum plate	Aluminum plate with vacuum
Vacuum plate size	L365mm×W200mm×H32mm
Adjustable range of scraper	0.02 ~ 3.5mmadjustable
Coating drive	Motor driven, stable and adjustable coating speed
Coating method	Flat plate coating, standard with metering devices such as film maker or scraper
Other advantages	Equipped with heating and drying system
Voltage	220V/50Hz
Overall dimensions	L500mm×W350mm×H320mm
