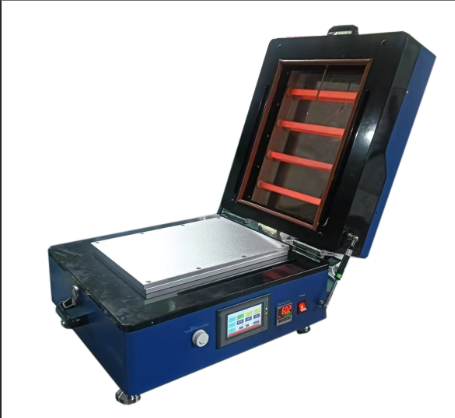

Automatic film drying machines are widely used in various high-temperature film research, such as ceramic films, crystal films, battery material films, and special nano films; It can adapt to the development of science and technology for film formation under high temperature conditions in the future
Features:
1.Strong wind circulation drying and heating, digital display temperature control;
2. Flat coating, motor driven scraper coating, stable and adjustable coating speed;
3.The travel can be adjusted through a travel switch between 0 and 250MM;Standard film maker with high coating accuracy and
adjustable coating thickness;
4.The coating speed is adjustable within the range of 0 to 120 MM/s (lithium iron phosphate slurry); Vacuum aluminum plate, which
can quickly place or remove the substrate;
5.Can be used in a glove box, easy to operate, small in size, and can save space; Built-in vacuum pump, substrate adsorption
without deformation and wrinkles;
*Coating method: flat coating, standard with film maker or scraper and other measuring devices
*Coating drive: Motor driven, stable and adjustable coating speed
*Coating width: 150mm, customizable
*Coating speed: 0-120mm/second (lithium iron phosphate slurry);
*The travel can be adjusted through a travel switch between 0 and 250mm;
*Vacuum plate: with vacuum aluminum flat plate;
*Vacuum plate size: L365mm x W200mm x H32mm;
*Adjustable range of scraper: 0.02-3.5mm adjustable;
*Accuracy: ± 3um
*Infrared heating and drying system: room temperature~120 ℃, digital temperature controller, accuracy ± 1 ℃
*One built-in oil-free vacuum pump is included;
*Power supply: 220V/50Hz;
*External dimensions: L500mm x W350mm x H320mm;
