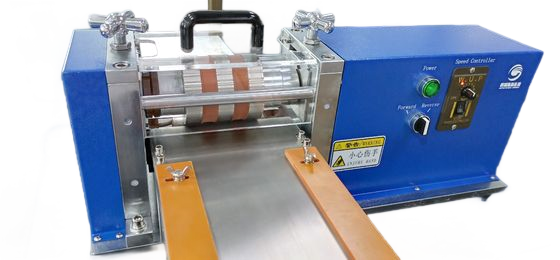

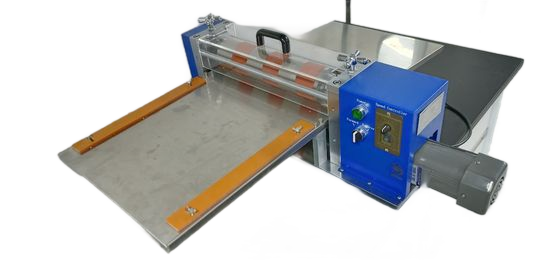

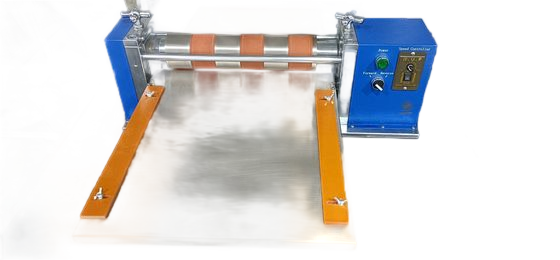

GRS-FT300 Lithium Ion Battery Slitting Machine for Electrodes Cutting

Detail Information

Place of Origin	China	Brand Name	GERUISI
Applicable Industries:	Battery Electrode Slit Cut	Knife Width:	10-345mm;
Cutting Thickness:	50-400 μ M Battery Electrode;	Cutting Speed:	<2m/min, Adjustable Knob;
Highlight	85mm electrode slitting machine, Lithium Ion electrode slitting machine, Lithium Ion battery slitting machine

Product Description

*Adjustable guide device for feeding positioning;

*Adopting electric rolling and slitting method;

*Adjustable meshing amount;

*The upper and lower blades are driven at the same speed and synchronously;

*Equipped with an organic glass protection device at the hob for safe operation;

*Open end roller fixing method for easy disassembly of the roller;

*High cutting accuracy and reliable operation.

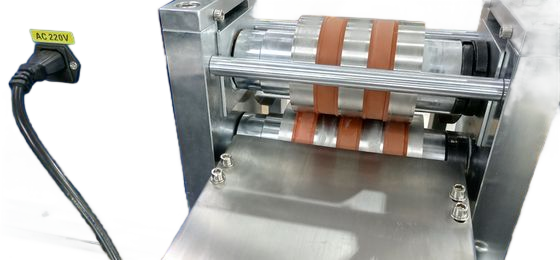

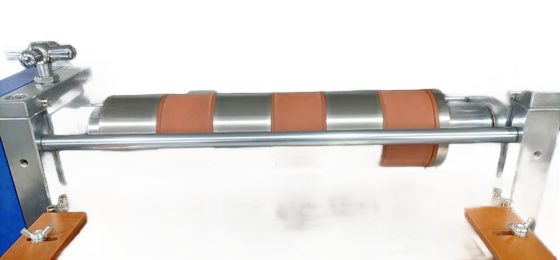

Equipment composition: *This machine is composed of upper and lower hobs, hob brackets, feeding and discharging positioning plates, gears, reducers, motors, and frames. *The main components are the upper and lower rolling knives, which are composed of steel knives and rubber knives spaced apart.

Specification

Cutter type	upper and lower circular knives for opposite cutting
Knife width	10-345mm;
Knife spacing	standard configuration 56mm, 56mm, 56mm, 58mm, 58mm, 58mm (optional other spacing);
Cutting thickness	50-400 μ M battery electrode;
Cutting capacity:	adjustable handwheel 0.2-0.4mm
Cutter diameter	85mm
Knife material	ultrafine particle alloy steel;
Width adjustment	Spacer adjustment
Cutting speed	<2m/min, adjustable knob;
Device size	L1400W800H700mm
Power	0.5KW
Overall dimensions	length 850 * width 620 * height 300 (mm)
Weight	100KG
