Item | Specification | QTY |

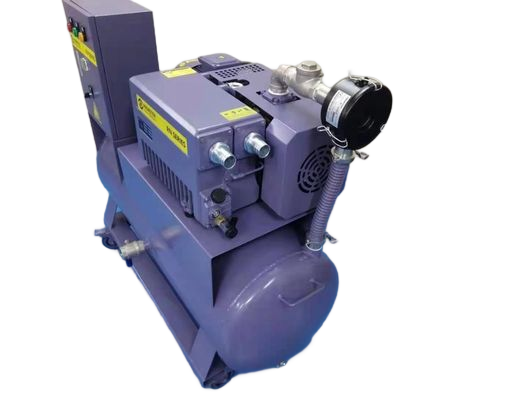

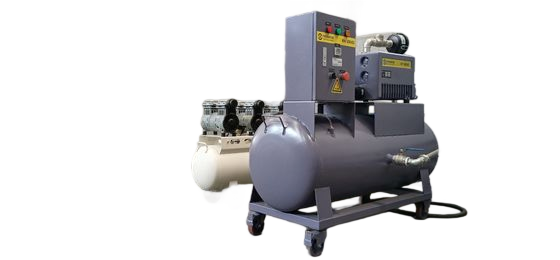

Main Pump | PRONOTEK PNK SPO100
Motor power: 3.0KW/unit; Rated pumping speed: 100 m ³/ h
Extreme vacuum: 0.1mbar; Motor noise: 65db | 1pc |
Air filter | Standard matching | 1set |
Air storage tank | Standard horizontal metal pressure chain with a capacity of 100L | 1pc |
Interface | One standard ball valve interface, one standard adapter interface, interface size 2 inches (inner diameter) | 1set |
Vacuum display meter | Standard stomach external shock resistant vacuum gauge, installation of electric control box | 1pc |

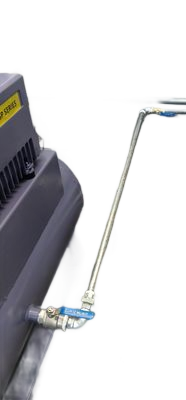

Connecting pipes and joints | Standard configuration specialized 304 corrugated pipe, ball valve, check valve | 1set |
Platform underframe | 5cm angle steel welded base frame, integrated with air storage tank and vacuum pump | 1set |
Power Distribution Box
| 1 set of single pump control distribution box, divided into automatic/manual modes
The upper and lower limits of vacuum pressure can be set, and automatic operation mode can be activated.
1 Digital vacuum meter, control knob, several power indicators, and 1 emergency stop button |
1set
|
