Appearance characteristic
|

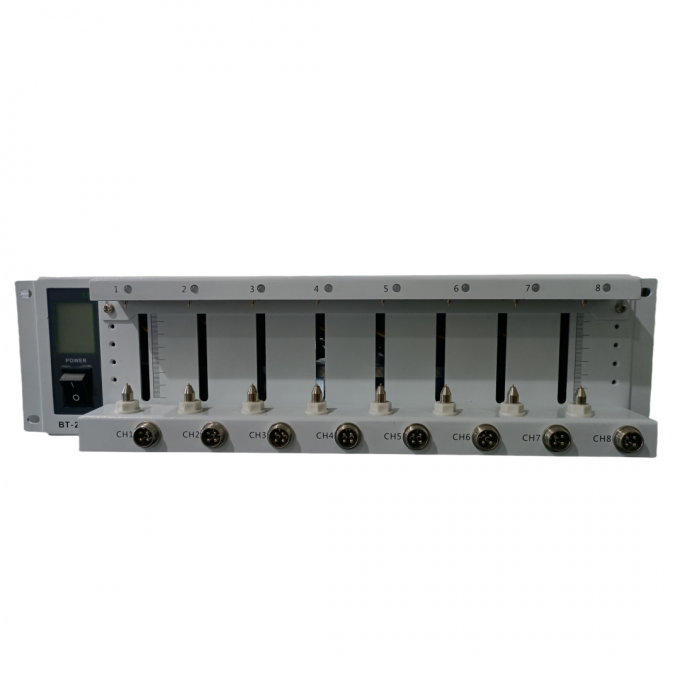

Four-wire thimble jig and aviation plug interface
|
|
Product size
|
Length * depth * height =49cm * 38cm * 13cm
|
|
Input power supply
|
Single-phase AC220V ±10%/50Hz;
|
|
Ac impedance
|
1 m Ω or higher
|
|
Voltage range
|
Charging voltage: 0V-5V; Discharge voltage: 2V
|
|
Voltage accuracy
|
Actual control accuracy: ±0.05% of FS; Stability: ±0.05% of FS
|
|
Constant voltage cut-off current
|
≤100uA
|
|
Automatic switching
|
Range 1 60uA-6mA (±0.05% of FS)
Range 2 6mA-60mA (±0.05% of FS) Measuring range 3 60mA-600mA (±0.05% of FS)
Range 4 600mA-6000mA (±0.05% of FS)
|
|
Current accuracy
|
Actual control accuracy: ±0.05% of FS; Stability: ±0.05% of FS
|
|
Charging mode
|
Constant current charging/constant voltage charging/rate charging/constant power charging/constant voltage current limiting
charging/pulse charging
|
|
Discharge mode
|
Constant discharge/constant voltage discharge/constant resistance discharge/rate discharge/constant power discharge/constant
voltage limit discharge/pulse discharge
|
|
Restriction condition
|
Voltage, current, relative time, capacity, -△V, multiplier current, capacity statistics C1, time statistics T1, counter N1,
counter N2
|
|
Recording condition
|
Time variation △t: 50ms-- 3600S
Voltage variation △U: 0.001mV-- 5V
Current variation △I: 0.001mA - 6000mA
|
|
Recording frequency
|
Maximum recorded frequency 20Hz
|
|
Test event log
|
Such as: running, stop, protection information, parameter reset, channel change, online calibration and other event records
|
|
Cycle number
|
1-99,999 times
|
|
Loop nesting
|
It has nested loop function and supports up to 3 layers of nesting
|
|
Operational protection
|
Support power outage protection, communication interruption protection, computer crash protection, system crash protection
|
|
Protection condition
|
Delay protection, over voltage, under voltage, over current, over volume, over temperature, over voltage, under voltage
|
|
Alarm mode
|
Test completion reminder, security protection alarm, abnormal error alarm, screen prompt information
|
|
Channel characteristic
|

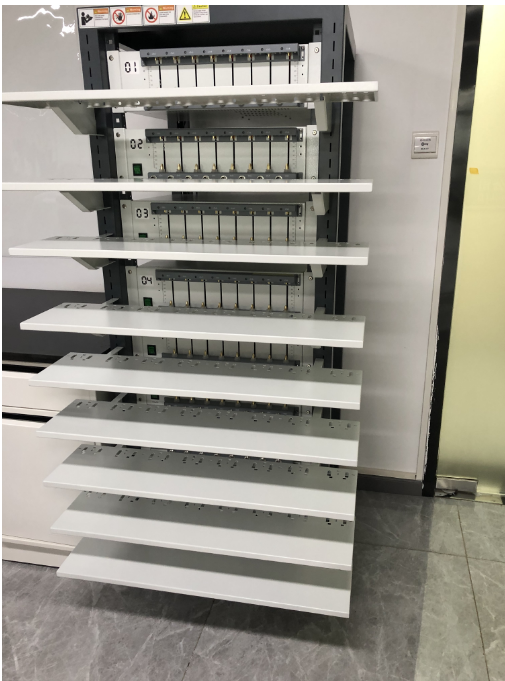

8 channels/station, independent programming, non-interference; 10 units/cabinet, removable tray is optional
|
|
Control mode
|
Constant current source and constant voltage source adopt double closed loop structure, high precision linear adjustment
|
|
Reference characteristic
|
Using the United States special benchmark integrated chip; Temperature coefficient: 5ppm/℃ (Max)
|
|
AD/DA
|
AD: 24bit; DA: 16bit
|
|
Screen information
|
3 inch LCD (case number, voltage range, current range, communication status, channel number, etc.) brightness can be adjusted
|
|
Communication mode
|
USB/RS485, photoelectric isolation technology, up to 256 access
|
|
Heat dissipation mode
|
Air cooling, fan speed support program control, temperature control, full speed three modes optional
|
|
Access mode
|

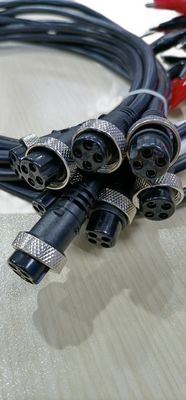

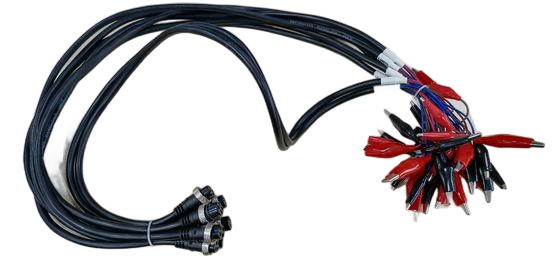

Four-wire system, support three-electrode measurement, buckle clamp, alligator clamp, polymer clamp, etc. (optional)
|
|
Software style
|
C# platform development, WIN10 style, flat design, adapt to the popular operating habits
|
|
Software language
|
Supports online switching between Chinese and English
|
|
Test scheme characteristics
|
Scheme script independence (can be arbitrarily copied, created, modified, deleted, etc.), loop control, data analysis, database
centralized management, real-time curve, curve comparison, etc
|
|
Work step editing feature
|
According to the running mode intelligent judgment logic relationship, prompt error operation, and automatically fill in the main
parameters and cut-off parameters, can also be manually modified
|
|
Mode operation characteristic
|
Start, stop, continue start, force jump, parameter reset, change channel
|
|
DCIR test
|
Supports DCIR calculation at fixed point
|
|
supercapacitor
|
With the supercapacitor test function, the test result is directly in the unit of "farad F", and the leakage current can be
measured
|
|
Display resolution
|
Adaptive 6-digit significant digit (voltage ×.××××× ×; Current ×.×××××)
|
|
Data presentation
|
Coordinate curve (X and Y coordinates can be customized), graph, data list (process, detail layer)
|
|
Data export
|
Can be translated into EXCEL, TXT, graphics (can specify the work step or specify the loop export)
|
|
Data save
|
Support single or multiple data save, multiple data save automatically create a folder, file name automatically add startup time
and box number and channel number, easy data management
|
|
Software upgrade
|
Support network remote push, online upgrade
|
