Product Introduction

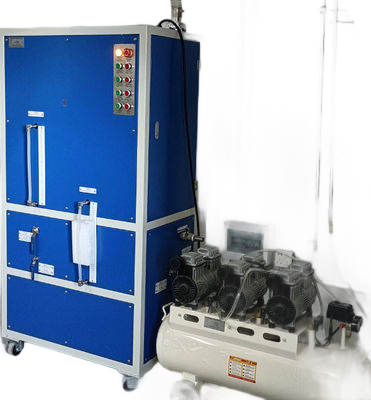

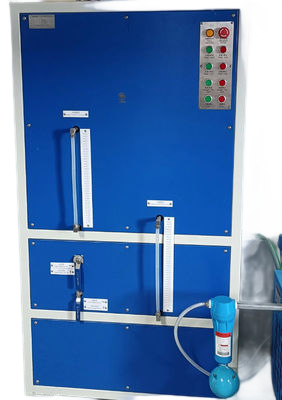

Solvent treatment system is a device that utilizes the principle of water bath absorption to treat NMP exhaust gas during the lithium battery coating process.
Features:
1.The two-stage water bath treatment unit has good effects on NMP and dust recovery.
lStainless steel fully welded inner liner has good corrosion resistance, and the shell at the powder spraying area is beautiful and generous.
2. Water bath principle for recovering NMP waste gas during coating process
3.Active self priming air intake can be directly added to tap water for use.
Technical parameters:
*Working mode: continuous operation;
*Processing capacity: 1800m ³/ H;
*Inlet temperature: ≤ 150 ℃;
*Recovery rate: ≥ 80%;
*Recycling object: water-soluble solvent gas;
*Processing object: gas;
*Processing range: water-based solvent;
*Contact material: SUS304 stainless steel;
*Gas emissions: external pipelines;
*Temperature: 0-40 ℃;
*Vibration and impact: There are no obvious vibration sources around;
*Explosion proof: The equipment itself undergoes explosion-proof treatment;
* Power: 3KW;
* Size: L1400 * W800 * H1800mm;
* Weight: 500KG.
