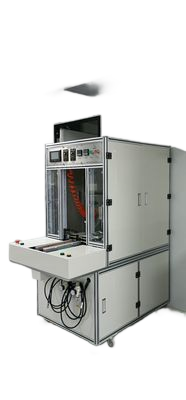

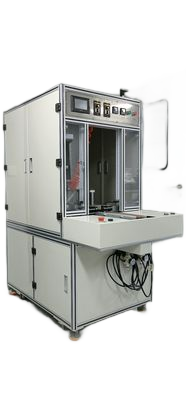

Pouch Cell Lithium Ion Battery Manufacturing Machine Edge Ironing Trimming

Detail Information
Brand Name GERUISI Model Number GRS-QZT350
Battery Cell Size: Cell Length: 15~170mm; Cell Width: 8~120mm; Cell Thickness: 2.8~10mm.
Highlight 2.5KW lithium ion battery manufacturing machine, Pouch Cell lithium ion battery manufacturing machine, 2.5KW lithium battery machine
Product Description

Used for the battery cutting, folding, stamping and forming three processes in one equipment.

Battery cell Application:

Cell length: 15~170mm;

Cell width: 8~120mm;

Cell thickness: 2.8~10mm (single pit effective thickness).



work speed
160-220time/hour
Cutter life
1 million times
air source input
0.5Mpa-0.7Mpa
Voltage
AC220V 50HZ
Power
2.5KW
Accuracy
±0.2mm
Size
L1350*W750*H1800
Weight
300Kg
