Place the battery cell on the hot pressing template, press the start button, start the hot pressing shaping machine, and the cylinder drives the hot pressing template to press down, causing the battery cell to be heated and pressed to shape. Then, take out the battery cell to complete the process.
Technical parameters:
1. Power supply: AC220V/50Hz;
2. Power: 1.5KW;
3. Air source: 0.5Mpa~0.8Mpa;
4. Hot pressing area: 200 * 200mm;
5. Pressure: 1T pressure adjustable;
6. Temperature control accuracy: ± 2 ℃;
7. Heating temperature: adjustable from room temperature to 250 ℃;
8. Parallelism of two pressing plates: within 0.05;
9. Equipment weight: approximately 80Kg;
10. Boundary dimensions: L350 * W320 * H550mm
Features:
*The temperature of the workbench can be adjusted through the buttons on the temperature controller panel. The current and set temperature values can be displayed on the LCD display screen, which is intuitive, has high temperature control accuracy, and is easy to operate;
*The pressure of the upper and lower workbenches can be adjusted through a pressure regulating valve to meet different process parameter requirements;
*This machine adopts a single workstation structure, with high parallelism between the upper and lower worktable panels, and a stable and reliable structure;
*The workbench is made of high-quality materials, which has good heat transfer effect, saves electricity consumption, and improves work efficiency;

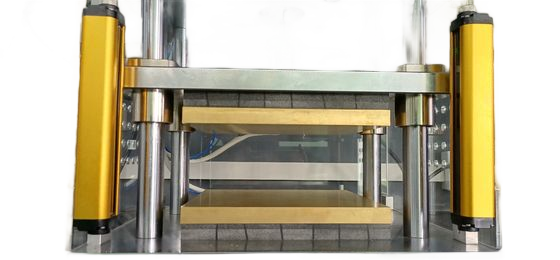

*Adopting a light curtain protection device for safe use;
*This machine has a temperature abnormal alarm function;
*The hot pressing time, temperature, and pressure can be adjusted;
*This machine adopts automatic and semi-automatic control, making it easy to operate;
*Small overall size, which can save space;
*Exquisite appearance, sheet metal adopts three-dimensional geometric design, simple and beautiful;
*During operation, electrical control can be used for automatic operation, and manual function can be used for debugging
