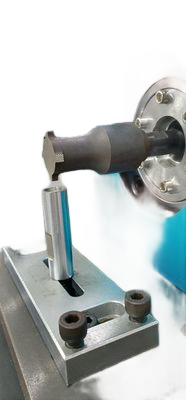

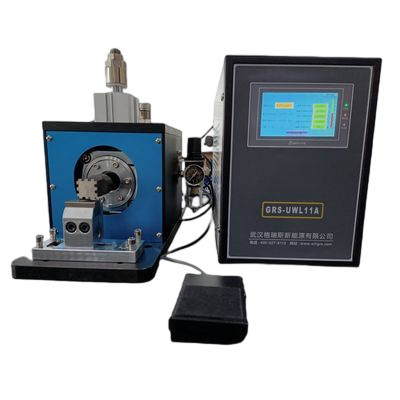

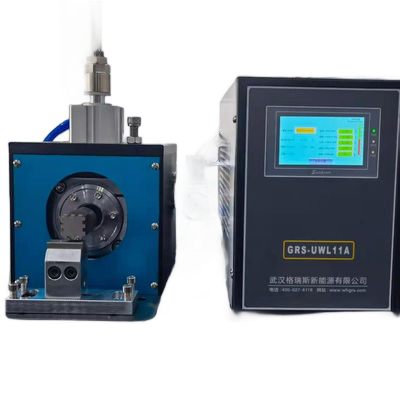

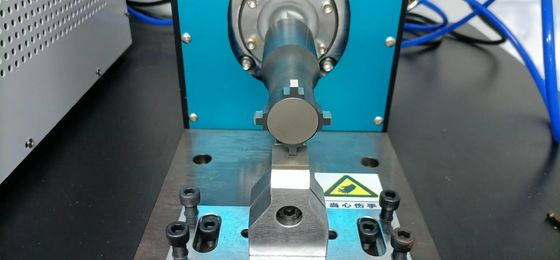

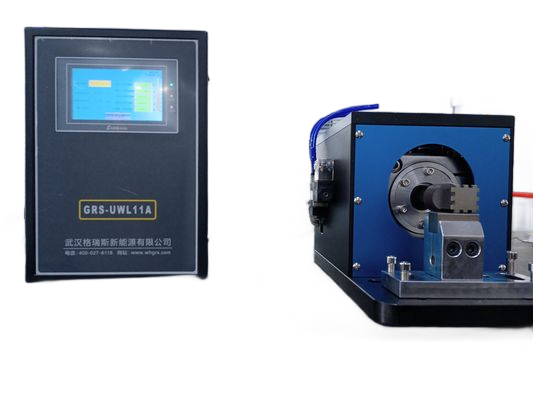

Ultrasonic Metal Spot Welding Machine Battery Welding Machine

Detail Information

Brand Name	GERUISI	Model Number	GRS-UWL11A
Core Components:	Spot Welding	Frequency:	20KHz, 40KHz Or 60KHz
Highlight	Ultrasonic Battery Cell Welding Machine, 60KHz Battery Cell Welding Machine, 20KHz spot welding machine for battery pack

Product Description

Ultrasonic metal Spot Welding Machine battery welding machine

Product Description

Ultrasonic electrode tab metal spot welding machine is commonly used for metal welding in winding and lamination processes. It has the characteristics of small size, beautiful appearance, convenient operation, firm structure, stable and safe use, and so on. The transducer converts the ultrasonic frequency high-power oscillation signal into mechanical energy at a corresponding frequency and applies it to the interface of the metal sheet to be welded, causing instantaneous heat generation at the junction of the metal sheets, thereby activating the particles in the metal lattice, allowing the molecules at the junction of the metal sheets to penetrate and weld together.
Features:
1.The internal resistance of the solder joint is small, the electrical conductivity is good after welding, and its resistance
coefficient is extremely low, close to zero;
2.All workpieces can be welded without pre processing, soldering tin, or soldering oil additives, which is economical and
convenient;
3.During welding, there is no spark, the operator is safe and assured, there is no smoke smell, and it will not cause air
pollution;
4.No traces of oxidation, ultrasonic cleaning function. Metal surfaces with dirt or oxides can be perfectly welded without surface treatment;
5.The welding head is made of wear-resistant material, with durable durability. Low welding cost, fast speed, easy operation, and convenient maintenance;
6.The welding point is firm, the temperature during operation does not exceed its annealing temperature, and does not change the metallographic structure of the workpiece. Its welding strength is stronger than other methods of welding, and the welding interface is neat and clean.;

Specification

Dimensions: Chassis length 440mm x width 190mm x height 290mm;

Welding box length 330mm * Width 190mm * height 340mm;

Net weight: 35Kg;

Output power: 800W (adjustable);

Welding layer: within 20 layers;

Working environment temperature: +5℃ to +50℃;

Sine harmonic parameters: ≥97%;

Input power factor: ≥80%;

Working frequency: 40KHz; (20KHz, 60KHz optional)

Working power supply: AC220V, 50Hz;

Mold frequency range: ±400Hz (According to 15KHz ultrasonic as an example, the mold frequency can be automatically tracked at 14.40-15.20KHz);

Automatic frequency tracking accuracy: ±5Hz;

Power stability: ≤5%;

Remote terminal dynamic response: ≤10ms;

Overcurrent protection current: 15A;

Overcurrent protection time: 100ms;

Overheat protection temperature: 85℃.

Application

* Battery electrode: nickel strip + copper foil, nickel strip + aluminum strip, aluminum strip + aluminum foil, aluminum strip + aluminum cap, aluminum shell + aluminum nickel composite strip and other materials single point, multi-point, single layer, multi-layer, square, strip and other processes of welding.

* Welding of automobile terminal, automobile wiring harness, motor terminal, relay piece, electrolysis, capacitor pole piece, carbon brush piece, cooling rack piece, copper tube, copper tube + aluminum sheet, copper tube + copper sheet and other processes.

Welding process:

Aluminum belt and aluminum cap welding; Nickel strip and copper foil welding (multi-point); Aluminum strip and aluminum foil welding (strip); Aluminum strip and aluminum foil welding (strip); Aluminum strip and aluminum foil welding (multi-point); Nickel strip and aluminum strip; Nickel strip and copper foil; Nickel strip and copper foil multilayer; Aluminum strip and aluminum foil multilayer; Aluminum shell and aluminum nickel composite strip welding; Nickel strip and copper foil multilayer; Aluminum strip and aluminum foil multilayer; Copper pipe sealing; Automotive wiring harness; Motor terminals are welded.
