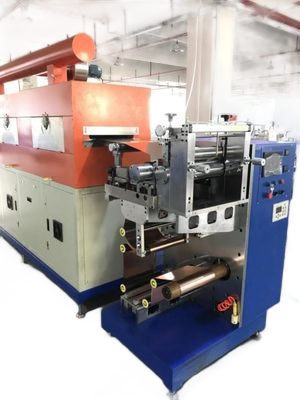

Pilot Line Lithium Ion Battery Coating Machine

Detail Information

Brand Name	GERUISI	Model Number	GRS-SY400
Coat Method:	Intermittent, Continuous Coater	Oven:	4.5m
Speed:	4.5m/min	Heating Function:	Max150℃
Design Width Of Roller Surface:	400 Mm	Guaranteed Coating Width:	Not Less Than330mm
Single Sided Coating Dry Thickness Range:	30～200μm	Coating Method:	Continuous Coating, Intermittent Coating
Electrode Thichness:	Aluminum Foil (Al): 8-30um Copper Foil (Cu): 8-30um 30um
Highlight	Intermittent lithium ion battery coating machine, 220V lithium ion battery coating machine, Battery pilot coating machine

Product Description

The coating machine is a three roller transfer coating equipment that is convenient for applying surface coating processes to various substrates. Especially used in the lithium ion battery industry, this device is designed to facilitate the use of
researchers, while meeting the requirements of coating accuracy and consistency that are no different from production. With excellent drying effects, it is an ideal choice for the research and development of lithium ion batteries, supercapacitors, nickel batteries, and other secondary batteries.
Features:
1.Base material tension control, stable belt running, equipped with a deviation correction device;
2.Hot air type oven, blowing on both sides, high drying effect;
3.Three roller transfer coating with wide coating window; Comma scraper metering, coupled with a precision adjustment mechanism, achieves high coating accuracy;

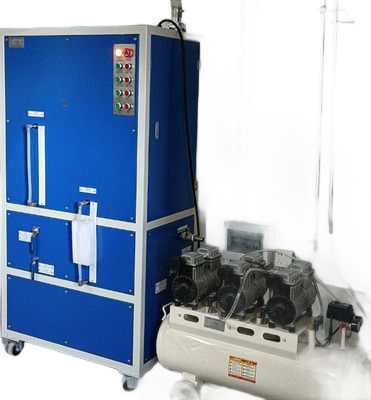

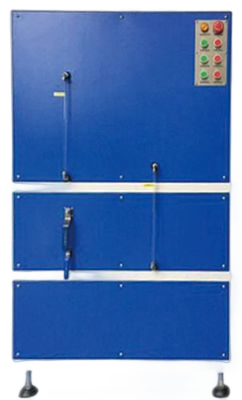

4.PLC control, touch screen operation, easy to use; Optional solvent recovery and treatment device.

Specification

Suitability system	Lithium iron phosphate, lithium cobalt oxide, lithium manganese oxide, graphite, silicon carbon ,and other system battery positive and negative electrode coating processes
Coating method	Continuous coating, intermittent coating
Number of oven sections	Three 1.5 meter ovens
Mechanical speed	Not less than 4.5m/min
Operating substrate thickness	Aluminum foil (Al): 8-30um Copper foil (Cu): 8-30um
Design width of roller surface	400 mm
Guaranteed coating width	Not less than330mm
Coating accuracy	Better than±3um(edge green error ±5um )
Review accuracy of double-sided coating film (mg/cm2)	Coating center value ± 1.0%
Suitable for slurry viscosity	2000~12000(mPas)
Single sided coating dry thickness range	30～200μm
Thickness adjustment	Free adjustment, dial indicator display accuracy lum
Coating length	Clearance; Single chip Max, 10000mm, with a margin of 8-120mm, and an accuracy of ± 0.5mm
Winding deviation correction accuracy	±0.5mm
Solvent properties	Oily solvent NMP{5.g=1033,b.p=204°℃; aqueous solvent H2O/NMP(5.q=1.000b.p=100℃)
Suitable for solid content range	20~85%
Coating dimensional accuracy(mm)	<+7 W≤±0.5
Positive and negative alignment accuracy(mm)	L≤±1, W≤±0.5
Heating Function	Max150℃
