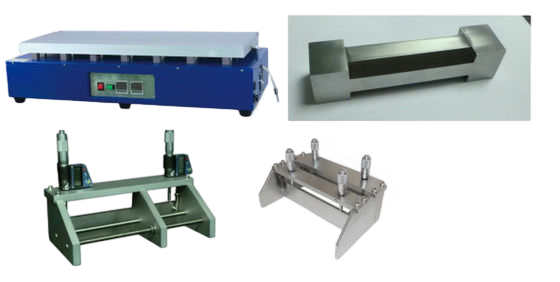

Laboratory Slot Die Desktop Tape Casting Film Coater By Slit Extrusion With Doctor Blade Film Applicator

PLC, touch screen control, easy parameter setting observation;

Accuracy 0.001mm) micron scraper, high accuracy;

The coating speed is adjustable in the range of 0 ~ 120mm/ s;

Vacuum aluminum tray for quick placement or removal of substrate;

Set in the touch screen of 0 ~ 800mm stroke;

small size, can save space;

exquisite appearance, sheet metal adopts three-dimensional geometric design, simple and beautiful;

Coating speed: 0 ~ 120mm/ s (Lifepo4 slurry) set parameters through the display screen;

Set parameters between 0 and 800mm through the display screen;

Vacuum plate: aluminum plate with vacuum;

vacuum plate size: L600mm×W260mm×H32mm;

Maximum coating area: Length 600mmX width 180mm

Film thickness accuracy :±0.01mm

Film maker: 180mm wide micron adjustable film applicator 1:150 wide double scraper micron adjustable film applicator 1:

Four side wet film maker (250um,500um,750um,1000um) one pay:

Power supply: 110V-220V/50Hz;

Weight: 40KG;

Dimensions: L960mm×W370mm×H250mm;

substrate
