500ml Vaccum Mixer for Lithium Ion Battery Coin Cell or Pouch Cell Slurry Mixing

Detail Information
Place of Origin China Mixer Type: Planetary Mixer
Barrel Volume (L): 500ml Material Processed: Battery Slurry
Range Of Spindle Speed(r.p.m): 1400rpm Mix Time: 0~600min Settable
Material: SUS304 Application: Lithium Battery Electrode, Chemicals Processing
Dimension(L*W*H): 330m*320mm*570mm Applicable Industries: Battery Lab
Core Components: Mixer Vacuum Level: -0.08Mpa, Keep 2 Hours
Product Description

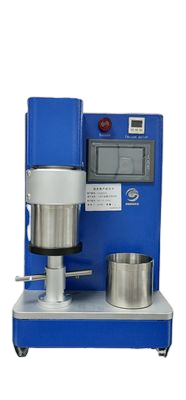

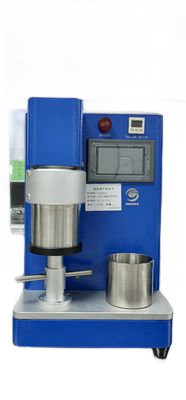

500ml Vaccum Mixer for Lithium Ion Battery Coin Cell or Pouch Cell Slurry Mixing





Product Description

Vacuum mixer is a high-efficiency equipment integrating vacuum mixing and dispersion, which is suitable for the mixing process of
positive and negative slurry in the process of battery experiment, as well as the mixing of powdery materials and various
ceramics; Since the stirring is done under vacuum, the absence of bubbles is completely realized, thus improving the filling of the material and the compactness of the model.
Features:
1. It adopts industry-leading software sealing process and has good sealing effect;
2.The stirring motor adopts gearbox frequency conversion adjustment, and different speeds and torques can be selected according to different processes and different viscosities;

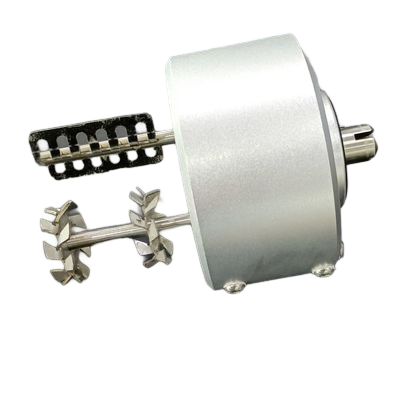

3. Double dispersion paddle design, so that the material up and down and around the double dispersion paddle design, so that the slurry mixing is fast and uniform;
4.The appearance is exquisite, using three-dimensional geometric design, simple and beautiful.

Specification
Rated power
200W,220V
Speed
1400rpm
Stir the pulp
Single shaft fan blade stirring pulp
Vacuum level
-0.08Mpa, keep 2 hours
Effective volume

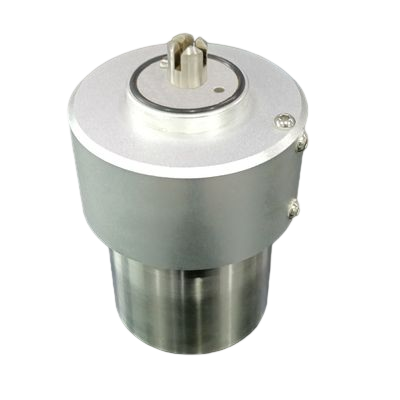

 WITH 500ML JAR
Mix time
0~600min settable
equipped with
Vacuum gauges, evacuation ports, etc
Weight
About 35kg
Size
330m×320mm×570mm(L×W×H)
Timing
The time can be set arbitrarily: 0-99 (H) set time
