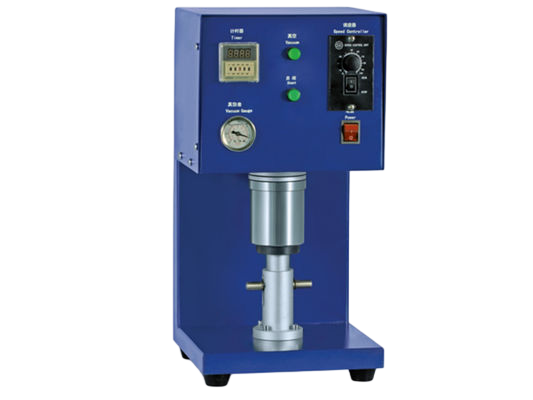

250ml Battery Lab Cup Vacuum Mixer GRS-ZKJB for Battery Laboratory Research



Vacuum mixer is a high-efficiency equipment integrating vacuum mixing and dispersion, which is suitable for the mixing process of
positive and negative slurry in the process of battery experiment, as well as the mixing of powdery materials and various
ceramics; Since the stirring is done under vacuum, the absence of bubbles is completely realized, thus improving the filling of the material and the compactness of the model.
Features:
1. It adopts industry-leading software sealing process and has good sealing effect;
2.The stirring motor adopts gearbox frequency conversion adjustment, and different speeds and torques can be selected according to different processes and different viscosities;
3. Double dispersion paddle design, so that the material up and down and around the double dispersion paddle design, so that the slurry mixing is fast and uniform;




Rated power	150W,220V
Speed	320 rpm
Stir the pulp	Single shaft fan blade stirring pulp
Vacuum level	-80Kpa
Effective volume	WITH 1 250ML JAR (OR 150ML JAR)
equipped with	Vacuum gauges, evacuation ports, etc
Other Benefits	There is a timing function, and the time can be set arbitrarily 0-99.99H setting time
Weight	About 10kg
Size	330m×310mm×510mm(L×W×H)
Timing	The time can be set arbitrarily: 0-99 (H) set time
