Basic parameters

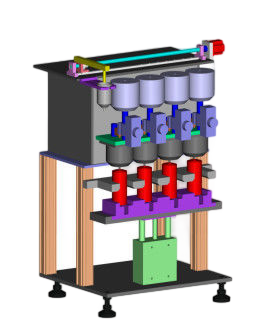

1 Applicable battery specifications for this filling station: Prismastic cell battery, cylindrical capacitor, hard shell battery with Electrolyte Filling injection volume of 0-1000ml (specific parameters provided by your company shall prevail)
2 Using vacuum high pressure liquid injection, the number of batteries in the bracket: 1 or customized.
3 Single machine efficiency: 1-2.5PPM per minute. (The specific situation depends on the actual parameters of your company)
4 The injection accuracy is ±0.25%, and the injection volume is adjustable from 0 to 500ml.
5 The static mode of vacuum pumping first and liquid injection, and vacuum and pressure alternating after liquid injection, has high efficiency, accurate precision, convenient and reliable operation.
6 Vacuum time, vacuum degree, liquid injection time, pressure and time can be set and adjusted.
7 Host appearance reference size: about 450 (L)*400(W)*750(H), weight: about 80KG.
8 External equipment: AC220V power supply 0.75KW.
Work condition
1 Ambient temperature: determined by the environment of workshop;
2 Relative humidity: Dry air shall be provided;
3 Power supply: 220V, 60HZ, voltage fluctuation range: +10% ~ -10%;
4 Compressed air: after drying, filtering and pressure regulation: the outlet pressure is greater than 5.0kg/cm2;
5 Vacuum source: vacuum pump 10 L/s, above -98KPa, or pipeline vacuum (above -98KPa);
6 Nitrogen: >0.4MPa;
7 shall ensure that the air on site is unimpeded.
