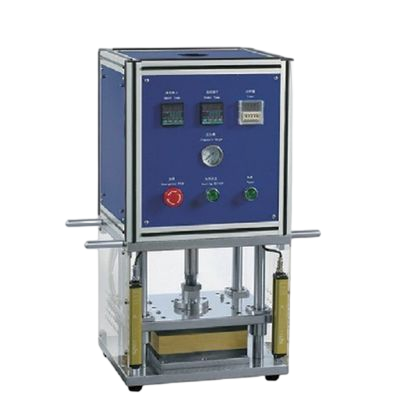

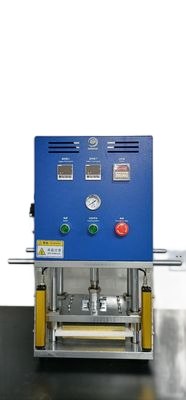

Hot Press Formation Lithium Pouch Cell Assembly Equipment Laboratory Machinery

Detail Information

Place of Origin	China	Brand Name	GERUISI
Model Number	GRS-RY200	Applicable Industries:	Pouch Cell Battery
Pouch Cell:	200*200mm	Speed:	300~500 Times/hr.
Pressure:	0~2T	Compressed Air:	0.5～0.7Mpa
Highlight	Hot Press Pouch Cell Assembly Equipment, lithium Pouch Cell Assembly Equipment, Hot Press lithium cell machinery

Product Description

It is suitable for thermal flattening and shaping of flexible packaged lithium batteries after winding, and it is easy to enter
the shell and flatten the appearance of the flexible package after shaping the bare battery core;
Features:
1.Automatic thermostatic control, automatic thermal pressure timing;
2.The machine is compact and flexible in use;
3.The pressure is continuously adjustable. The heating body is made of copper;
4.The whole machine operates safely and stably, with reliable control and convenient operation.

Specification

Effective compression area (L * W)	200*200mm
Working speed approx.	300~500 times/hr.
Pressure	0~2T
Voltage	AC220V 50HZ
Power	1000W
Compressed air	0.5～0.7Mpa
Size	L320W320H430
Weight	60Kg
