Pouch Cell Battery Lab Vaccum Pre Sealing Machine

Detail Information

Brand Name	GERUISI	Model Number	GRS-YF200
Max Battery Range:	Length 200, Width 160mm (including Gas Pocket)	Head Temperature:	Normal Temperature~250℃, Adjustable
Highlight	Lab Vaccum Pouch Cell Assembly Equipment, Pre Sealing Pouch Cell Assembly Equipment, Pre Sealing battery pack assembly line

Product Description

Product Description

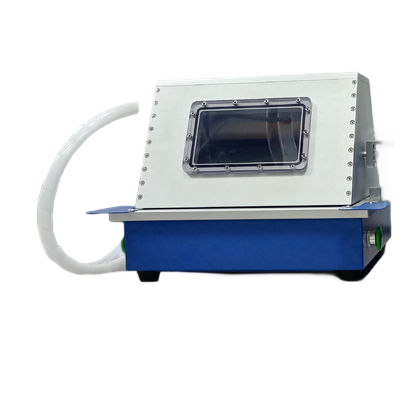

Pouch Cell Battery Lab Vaccum Pre Sealing Machine 0

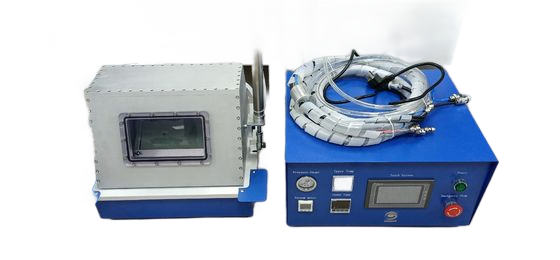

Pouch Cell Battery Lab Vaccum Pre Sealing Machine 1

The vacuum pre sealing machine is mainly suitable for vacuum pumping and hot pressing pre packaging of pouch cell lithium batteries after electrolyte injection and standing; This machine automatically completes the vacuum thermal packaging of the aluminum plastic shell of the battery by accurately controlling the main vacuum extraction box and pneumatic thermal sealing components.
Features:
1.The head is made of copper material, with good heat transfer effect, saving power consumption, improving work efficiency, and saving energy compared to similar products;
2.Through a perspective window, changes in the lumen can be observed during operation;
3.Can be applied to different specifications of product batteries, and easy to adjust;
4.The pressure of the upper and lower heads can be adjusted through pressure regulating valves to achieve different process parameters inquiry;
5.The cover cavity is driven by a cylinder and guided by a rotating guide sleeve, allowing for flexible movement up and down, and accurate guidance to ensure product sealing requirements;
5.Easy to operate, beautiful in appearance, small in size, and light in weight

Specification

*PLC touch screen automatic control;

* The cavity is made of aluminum alloy, corrosion resistance, solid structure;

* Adjustable vacuum degree up to -95Kpa (buyer's own vacuum pump);

* Head temperature: room temperature ~ 250℃, temperature adjustable;

* Temperature control accuracy: ±2℃;

* Heat seal pressure: 0 ~ 7Kg/cm² adjustable;

* Heat sealing time: 0 ~ 99 seconds adjustable;

* Edge width: 5±0.4mm (according to customer requirements);

* Maximum edge size: 200mm;

* Max battery range: length 200, width 160mm (including gas pocket);

* Seal thickness range: 60~300um;

* Sealing thickness accuracy (mm) : any two point package thickness difference <15um;

* Gas consumption: about 0.2L compressed gas/once per seal;

* Air pressure working speed: ≥180 times /h;

* Power: 300W heating tube, heating power consumption of about 0.6KW;

* Power supply: 220V/50Hz;

* Compressed air source: 0.5 ~ 0.8Mpa; When used in the glove box, the cylinder power source must be consistent with the working gas used in the glove box;

Equipment dimensions:

* Overall size: working section: 470mm * 485mm * 435mm;

Control box: 420mm * 325mm * 225mm;

* Weight: about 50Kg.
