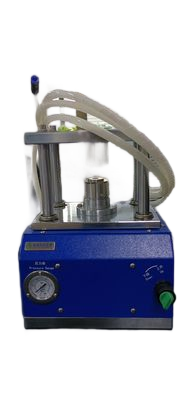

Laboratory Pneumatic Coin Cell Crimper Sealing Machine

Detail Information

Place of Origin	China	Brand Name	GERUISI
Sealing Type:	Coin Cell	Applicable Industries:	Battery
Application:	Coin Cell Production	Crimping Pressure:	Manual Regulating Valve Control, Maximum Pressure 1MPa, Recommended Pressure 0.7MPa, Accuracy Within ± 0.5%
Coin Cell Type:	CR16, CR20, CR24, And CR30 Can Be Selected Or Added
Highlight	manual coin cell crimper Sealing Machine, Pneumatic manual coin cell crimper, Pneumatic coin cell crimper

Product Description

The pneumatic button/coin cell packaging experimental equipment is mainly used for sample production of battery material research and development in the laboratory to conduct button cell and capacitor scientific research sealing, and also can be used for small batch trial production in the factory. It uses electric mode to save labor. Different molds can also be configured for battery disassembly, pole slice pressing, battery powder pressing and other operations.
Features:
1.Pure pneumatic operation, no need for electricity, easy to use;
2.Compressed air or inert gas cylinders can be used for gas supply, and the compressed air exhaust can be connected externally to prevent damaging the atmosphere of the glove box;
3.Precision mold design ensures accurate and reliable sealing and molding, solid steel structure design, stable and safe use;

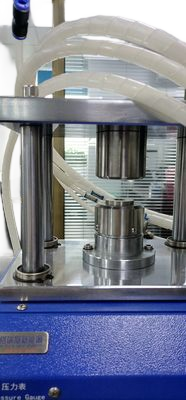

4.The inner ring of the sealing cup of the upper mold is equipped with a screw spring centering mechanism to ensure that if the battery is stuck and cannot be taken out when sealing, just twist the top screw to force the button cell out;
5.The lower mold uses a high-precision positioning ring to limit the height of the battery packaging, to avoid damage to the
battery and sealing cup in case of excessive and unstable packaging pressure

Specification

Air source	0.6～0.8MPa argon and nitrogen gas cylinders, or compressed air (it is not recommended to use compressed air in the glove box)
Exhaust design	Specially designed exhaust port, which can be externally connected through devices such as KF40
Gas consumption	Single sealing consumes about 480ml of gas
Coin cell Crimping Sealing pressure	Manual regulating valve control, maximum pressure 1MPa, recommended pressure 0.7MPa, accuracy within ± 0.5%
Sealing stroke	30mm
Sealing Crimping coin cell mold	Standard configuration of CR20 series packaging molds, optional or additional specifications
Shelling mold	Various specifications such as CR16, CR20, CR24, and CR30 can be selected or added
Installation dimensions	L290mmW205mmH330mm
Weight	25Kg
Other functions	With the function of preventing short circuit of battery seal
Structure material	High strength chrome steel, with environmentally friendly plating and spraying treatment on the surface, never rusting
