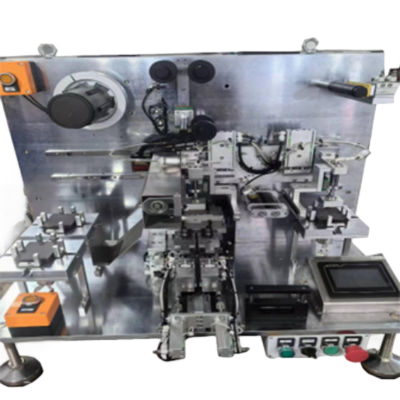

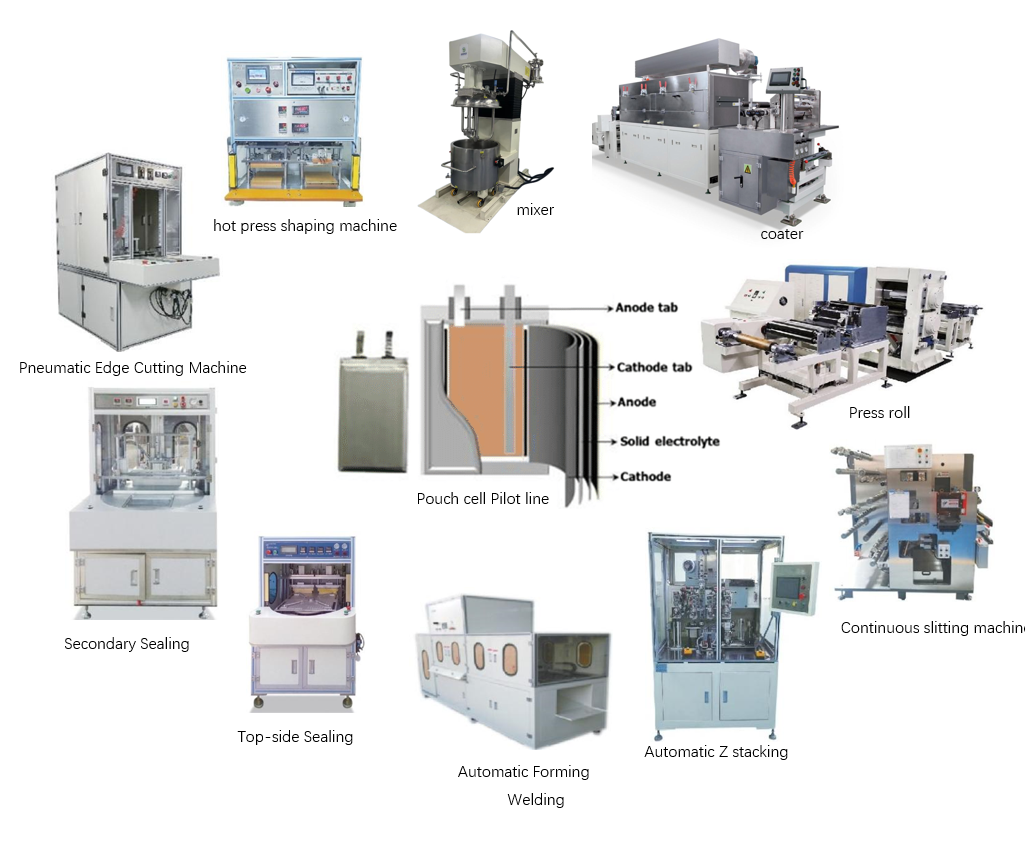

Z Shaped Pouch Cell Stacking Machine Lithium Battery Equipment

Detail Information

Place of Origin	China	Packaging Type:	Solid Battery
Lamination Speed (S/slice):	2-3S/piece	Stacking Accuracy:	≤ ± 0.3mm
Electrode Width:	40-90mm

Product Description

Products Description

* Z-shaped diaphragm belt; The active unwinding control of the diaphragm ensures appropriate tension during the lamination
process, ensuring minimal deformation of the diaphragm during extension;
* Manual loading, automatic positioning, and cyclic stacking of polar plates and diaphragms (plate type);
* The lamination is completed, and the battery cells can be manually removed using a fixture, and adhesive can be directly
applied to the fixture;
* Equipped with a built-in vacuum generator as standard, it can also be connected to a factory vacuum externally;
* Within the thickness range of the local lamination, the number of laminations can be freely set;
* Three station design, can be applied to the stacking process of liquid battery and solid-state battery electrodes, and the
stacking program can be flexibly switched;
* Adopting compatibility design, the battery size can be adjusted by customizing some molds and adjusting the pressure claw,
with a large adjustment range;
* PLC control, HMI operation, easy to use and maintain;
* Can be used in a glove box

Specification

Air source	0.5-0.8MPa compressed air
electrode width	40-90mm
electrode length	40-100mm
Stacking thickness	≤ 15mm

* Single phase AC220V ± 10% (customizable AC110V), frequency 50/60Hz, power 400W;
* Air source: 0.5-0.8MPa compressed air;
* Vacuum source: The vacuum degree is better than -60Kpa (measured at standard atmospheric pressure, equipped with a built-in
vacuum pump as standard, or an external vacuum pump can be customized).
* Stacking method: Z-shaped stacking (liquid battery, membrane in roll type); Solid state stack (solid-state battery, with a
diaphragm in the form of a chip).
* Operation method: manual feeding, automatic picking and stacking of materials, manual fixture for taking and pasting of
battery cells;
* Stacking rhythm: 2-3S/piece for stacked electrodes, 4-6 S/piece for stacked metallic lithium (excluding the stacking
preparation time for each cell);
* Stacking accuracy: Liquid battery: ≤ ± 0.3mm (relative position size between electrodes);
Solid state battery: ≤ ± 0.5mm (relative position size between electrodes);
* electrode width: 40-90mm;
* electrode length: 40-100mm (in the direction of the electrode ear, excluding the size of the electrode ear);
* Standard mold: Liquid state battery (solid-state battery): Design the fixture according to the size of the battery electrode
provided by the customer.
* Stacking thickness: ≤ 15mm; The number of stacked layers can be set based on the thickness of the electrode (within the range
of local stacked thickness);
* electrode ear length: 0-25mm;
* Equipment size: L790 * W740 * H730mm (subject to actual design);
* Weight: approximately 200Kg;
* Electrical part
* PLC Xinjie/Omron
* PLC expansion module Xinjie/Omron
* Touch screen Kunlun connectivity
* Electromagnetic valve AIRTAC
* Cylinder AIRTAC
